Furniture Design from Sketch to CAD: A Professional Methodology

Article by

M. Skipper

Founder & Lead · Craft'n Build Creator Studio

A beautiful sketch is a promise that your CAD model must keep, yet most designs fail the moment they meet the reality of structural physics. You've likely experienced the frustration of a digital model that looks perfect on screen but produces a cut list that's impossible to assemble in the workshop. It's a common hurdle for designers who treat software as a digital canvas rather than a rigorous engineering environment. Wasting expensive hardwoods due to poor digital planning isn't just a financial loss; it's a failure of the design process itself.

This guide will teach you how to master furniture design from sketch to CAD by implementing a professional, logic-first methodology. You'll learn to bridge the gap between creative intuition and manufacturing precision, ensuring your work possesses both aesthetic grace and structural integrity. We'll explore the transition from hand-drawn ideation to parametric validation, moving through a repeatable workflow that generates accurate documentation and professional-grade joinery. By the end, you'll understand why CAD isn't just a drawing tool, but a framework for technical mastery. Every line you draw should serve a purpose, and every joint must be validated before the first piece of timber is cut.

The Bridge Between Vision and Reality: Why Sketches Fail Without CAD

A hand sketch is an expression of intent, but it rarely accounts for the physical laws that govern a workshop. Many designers fall into the trap of visual-first design, where the silhouette takes precedence over structural logic. While a charcoal drawing can capture the soul of a chair, it cannot calculate the shear strength of a tenon or the clearance required for a soft-close runner. This is where Computer-Aided Industrial Design (CAID) principles become vital, serving as a bridge between the fluid nature of ideation and the rigid requirements of engineering. The transition of furniture design from sketch to CAD requires a shift in mindset from how a piece looks to how it actually functions under load.

CAD serves as your first point of validation. It isn't merely a tool for creating pretty pictures; it's a structural testing ground. If a design fails in the digital environment, it will certainly fail on the workbench. Professional designers use CAD to reconcile the "artistic" with the "attainable," ensuring that every curve and taper respects the thickness of the material and the integrity of the joinery. Without this digital gatekeeper, you risk wasting expensive hardwoods on concepts that are fundamentally unbuildable, which is why specialized workshops like Bois & Design prioritize technical precision in every custom project.

The Limitations of the Creative Sketch

An artistic sketch often lacks the "envelope" of physical constraints. It's easy to draw a floating shelf with a razor-thin profile, but that drawing won't tell you how to hide the mounting hardware or manage the leverage of a heavy load. Hand drawings frequently ignore the reality of wood movement. They assume timber is a static material, when in fact, it's a biological one that breathes and shifts with the seasons. Identifying these unbuildable geometries on paper is the first step toward professional mastery. You must define your primary dimensions, such as height, depth, and width, before you ever open your software. If these foundational anchors are missing, your CAD model will lack the necessary constraints to be useful for manufacturing.

Transitioning to Technical Sketching

Before you touch a mouse, your paper sketches should evolve to include "logic layers." This means moving beyond the outline to map the skeleton of the piece. Start notating joinery types, such as mortise and tenon or dovetails, directly on your sketches. Mark the grain direction for every major component. This level of preparation is a core pillar of The Design Key Full Master Programme, where we teach that a systematic methodology saves hours of digital rework. A pre-CAD checklist should include your material thicknesses, hardware specifications, and an assembly sequence. When you approach the computer with a technically annotated sketch, the CAD process becomes an exercise in precision rather than a series of guesses. You aren't just drawing; you're building a digital prototype that's ready for the real world.

Structural Logic: The Engineering Basis of Furniture Design

Structural logic represents the intersection of engineering and aesthetics. It's the discipline of ensuring that a visual concept doesn't collapse under its own weight or fail as environmental conditions change. When transitioning your furniture design from sketch to CAD, you must adopt a logic-first mindset. This means designing from the inside out. You don't simply draw a box; you engineer a skeleton. A professional CAD model acts as a structural validation framework, allowing you to simulate stress points and load-bearing capacities before a single board is milled. If you are interested in how these professional standards are applied to specialized interior renovations, you can find out more about the technical execution of bathroom remodeling.

Adopting this mindset requires a shift in how you perceive software. You should utilize Woodworking and Furniture Design Software to precisely define the mechanical relationships between components. If a joint is too small to handle the leverage of a chair back, the digital environment should reveal that flaw. By treating CAD as a laboratory for structural integrity, you eliminate the guesswork that often leads to catastrophic failures in the workshop.

Accounting for Material Behavior

Working with organic materials requires a deep understanding of cellular biology. Solid timber isn't static. It expands and contracts across the grain in response to relative humidity, meaning your digital models must account for this seasonal movement. For instance, a solid wood tabletop cannot be rigidly fixed to a frame; the CAD geometry must include slotted holes or buttons to allow for movement. This differs significantly from designing with sheet goods like plywood or MDF, which are dimensionally stable. When specifying materials, consider how technical treatments like ammonia fuming of hardwoods might influence the final aesthetic without compromising the structural integrity you've built into the model.

Joinery as the Foundation of Digital Models

Professional-grade models never "butt" parts together. If you aren't modeling the joinery, you're just drawing pictures. You must model the actual mortise and tenon joints, dovetails, and housings to verify fit and clearance. Modeling these elements allows you to check for interference and ensure that the "meat" of the timber is sufficient to support the joint. Developing a standard joinery library within your workspace speeds up this process, ensuring consistency across your portfolio. This systematic approach to furniture design from sketch to CAD ensures that the final piece is as durable as it is beautiful. To master these technical nuances and build a repeatable professional workflow, consider exploring The Design Key Full Master Programme, which provides the foundational logic required for high-level execution.

Choosing Your Workflow: Parametric vs. Direct Modeling

Selecting the right digital environment is as critical as choosing the right timber. Your choice of workflow determines how your furniture design from sketch to CAD adapts to changes during the development cycle. Professional studios generally categorize their methodology into two distinct streams: parametric and direct modeling. While one offers the rigid discipline of engineering, the other provides the fluidity of sculptural art. Understanding the logic behind these systems is essential before you commit to a specific software package.

Parametric modeling relies on a history-based timeline. Every dimension is a variable that can be adjusted later without rebuilding the entire model. Direct modeling, often called "push-pull" design, allows for immediate manipulation of geometry without the constraints of a historical record. For bespoke, sculptural pieces where form is dictated by ergonomics rather than standardized production, direct modeling offers unparalleled freedom. However, for scalability and technical precision, parametric logic is the undisputed industry standard. Innovative designers are now using Ai Implementation for Design Workflows to bridge the gap between creative form-finding and technical data extraction, maintaining the soul of the original sketch while ensuring the model is backed by rigorous data.

When to Use Parametric Systems

Parametric systems like Fusion 360 or SolidWorks are designed for complex assemblies. They allow you to manage global variables, such as material thickness or overall cabinet width, through simple equations. If you change a single value, the entire assembly updates automatically. This is particularly valuable for Interior Architecture and built-ins where site dimensions often shift. Perhaps the greatest advantage is the generation of "live" cut lists. These documents update in real-time, ensuring your manufacturing data is always synchronized with your 3D geometry. It's a disciplined approach that prioritizes long-term editability over immediate speed.

When to Use Direct Modeling

Direct modeling tools like Rhino or Shapr3D excel during the early conceptual phases. They offer speed and fluidity, allowing you to iterate on organic shapes and complex ergonomic curves that might be cumbersome to define parametrically. It's an excellent way to quickly translate a rough furniture design from sketch to CAD for visual approval. But you must be cautious. The lack of a history-based timeline can lead to "broken" geometry if you need to make fundamental structural changes later. Moving these models to manufacturing often requires a secondary cleanup phase to ensure the geometry is watertight and technically sound for the workshop.

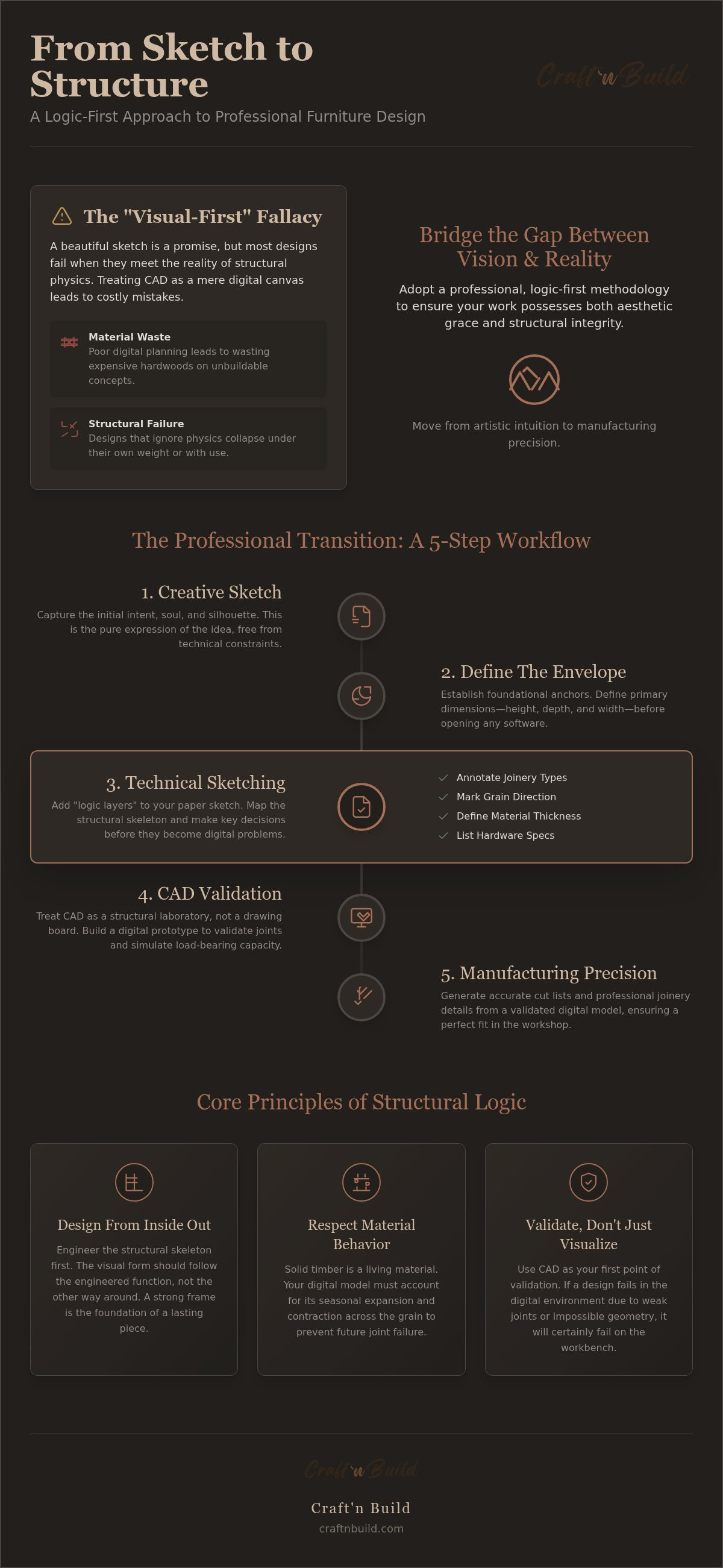

The 5-Step Professional Transition: Sketch to CAD

Mastering the transition of furniture design from sketch to CAD requires a disciplined sequence that preserves the soul of the original concept while enforcing engineering rigor. This is not a linear path, but a layered methodology. Professionals don't jump into software with a vague idea; they follow a repeatable framework that minimizes errors and material waste. By following a structured progression, you ensure that the creative energy of your hand sketches isn't lost during the technical translation.

• Step 1: The Proportional Sketch. Establish the "envelope," which is the maximum spatial footprint your piece will occupy.
• Step 2: The Structural Overlay. Map the skeleton and joinery on paper to identify how forces will travel through the timber.
• Step 3: The CAD Blocking. Create simple 3D volumes to establish the visual balance and footprint without getting bogged down in details.
• Step 4: The Detail Phase. Model the actual joinery, hardware, and specific tolerances.
• Step 5: The Validation Phase. Interrogate the model to generate technical drawings and manufacturing data.

From Blocking to Detailed Assemblies

Step 3 marks the move from paper to the digital workspace. Professionals utilize a "Top-Down" approach, where the overall form dictates the individual parts. You should never start with the details; instead, build the primary volumes first to ensure the proportions are correct. As you move into Step 4, managing tolerances becomes your primary focus. You must account for glue lines and the specific fit requirements of hinges or drawer slides. Referencing Design Concepts in 3D CAD Format provides a benchmark for these professional standards, illustrating how complex assemblies are structured for manufacturing success. To formalize your design process and adopt these rigorous standards, explore our interior design programs.

Outputting for the Workshop

The final digital model is more than a visualization; it's a comprehensive set of instructions. In Step 5, you must generate a professional Furniture Cut List that accounts for grain direction and material yield. This documentation is the final safeguard against expensive workshop errors. You should also create exploded views for assembly instructions, which act as a visual map for how every tenon and housing interact. Whether you're preparing files for CNC routing or traditional manual layout, the goal is total clarity. A model that cannot be translated into precise shop drawings is a failure of the design process. This commitment to technical excellence is shared by artisans in every high-end field; for example, you can discover Mike Nekta New York to see how diamond experts apply similar precision to luxury jewelry.

This principle of digital precision applies to every craft; just as you use CAD for joinery, you can utilize professional digital patterns from Embroidery n Sewing to ensure that any embroidered textile components are executed with the same level of accuracy as your timber work.

For those specializing in cabinetry and built-ins, this precision is exactly what allows services like CutByBEES to provide custom-made flat pack cabinets that perfectly match the designer's digital specifications, ensuring a seamless transition from the screen to the final assembly.

Mastering the Professional Design Workflow

True mastery in the studio isn't defined by how many buttons you can click in a software interface. Proficiency in a digital tool accounts for only 20% of the furniture design equation. The remaining 80% is the application of a systematic methodology that governs how you think about materials, forces, and assembly. To see how this methodology is applied to complex luxury interiors, you can explore Bespoke Kitchen Design and Supply from Reality Kitchens and observe how structural logic informs high-end manufacturing. To evolve from a maker into a designer-engineer, you must prioritize structural logic over mere visual representation. A professional workflow ensures that your furniture design from sketch to CAD is a journey of increasing technical certainty rather than a series of aesthetic guesses.

As we move through 2026, the integration of artificial intelligence is fundamentally altering the sketch-to-CAD pipeline. AI isn't replacing the designer; it's automating the tedious aspects of technical modeling and material optimization. This shift allows you to focus on high-level decision-making and material innovation. However, these tools are only as effective as the logic you feed them. Without a disciplined approach to joinery and wood movement, even the most advanced AI will produce flawed geometry. Success requires a "logic-first" mindset where you understand the "why" before you execute the "how."

The Design Key: A Framework for Success

A rigorous framework is what separates a hobbyist from a professional practitioner. The Design Key Full Master Programme provides this essential structure, teaching you to apply engineering principles to every curve and taper. This methodology allows you to move beyond individual furniture pieces into the complex world of professional interior architecture. By adopting a disciplined mindset, you learn to treat every project as a series of solved problems. This transition requires you to view your digital workspace as a validation tool for structural integrity, ensuring that every design you produce is ready for the rigors of the real world.

Next Steps for the Serious Learner

Refining your craft is a continuous process of technical accumulation. Building a library of technical reference material ensures that you have the data needed to make informed material choices. To stay competitive in a rapidly evolving industry, implementing AI for Design Workflows is no longer optional; it's a requirement for speed and accuracy. Enrolling in specialized programs allows you to master the nuances of furniture design from sketch to CAD, bridging the gap between traditional craftsmanship and modern digital efficiency. Commit to the rigors of the trade, and you'll find the quiet satisfaction that comes from true professional mastery.

Elevating Your Craft from Concept to Execution

Transitioning your furniture design from sketch to CAD is more than a technical requirement; it's a commitment to professional integrity. You've learned that a successful piece depends on a logic-first mindset that prioritizes structural validation over mere aesthetics. By adopting a systematic five-step workflow, you ensure every digital line translates into a viable physical joint. This methodology bridges the gap between creative intuition and manufacturing precision, preventing material waste and structural failure. When you understand these principles, you begin to appreciate the technical mastery found in historic pieces; for inspiration from the finest examples of English furniture, you can visit Nicholas Wells Antiques.

Professional studios don't rely on guesswork. They utilize rigorous frameworks to manage complex assemblies and environmental material behavior. You can adopt this same discipline to elevate your work from simple making to sophisticated designer-engineering. Master the professional design methodology with The Design Key Master Programme. This curriculum is utilized by interior architecture studios and includes professional-grade project templates focused on structural logic and buildability. Adopting a repeatable, rigorous process is the surest path to mastery. Your next project deserves the precision of a proven framework.
